Descripción
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700).
Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC).
14+1+1 Power Phase, Dr.MOS for VCore+GT.
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1: 1 M.2 Key E.
Graphics Output Options: HDMI, eDP.
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4):1 Hyper M.2 (SATA3 & PCIe Gen4x4).
1 USB 3.2 Gen2x2 Rear Type-C: 1 USB 3.2 Gen2 Rear Type-A,1 USB 3.2 Gen1 Front Type-C.
9 USB 3.2 Gen1 Type-A (5 Rear, 4 Front): 3 USB 2.0 (1 Rear, 2 Front).
Dragon 2.5G LAN.
Supports ASRock Auto Driver Installer.
Detalles
| Brand | ASRock |
|---|---|

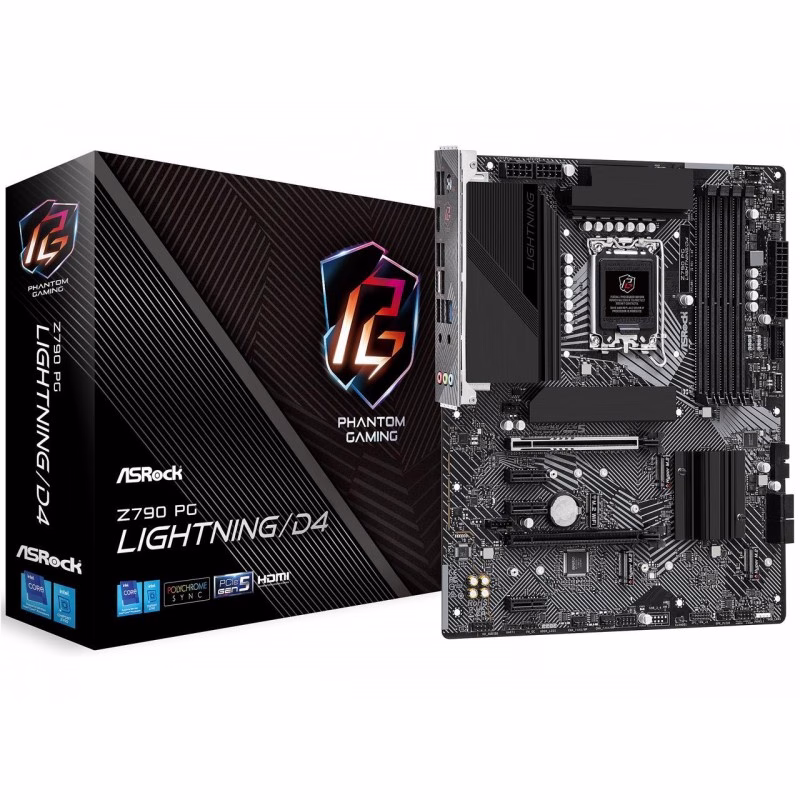

| Model | Z790 PG LIGHTNING/D4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4533+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively. Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
|---|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* |
| PCI Express x1 | 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)* * Supports NVMe SSD as boot disks |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports Intel Volume Management Device (VMD) |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Back I/O Ports | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 5 x USB 3.2 Gen1 Ports 1 x USB 2.0 Port 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
|---|---|
| Other Connectors | 1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
